i5s | Smart Spot Welding System
- i5s Brochure - 869.7 KB
- i5s Component List - 704.9 KB
- Knowledge Center
- OEM Approvals - 813.9 KB
The new Pro Spot i5s Smart Spot Welding System comes equipped with the industry’s most advanced adaptive auto welding technology and robust on-board training resources. The i5s advanced welding control system senses, reacts and adjusts welding energy based on material composition, thickness and resistance properties in real-time.
Locate a Distributor ›-
NEXT GENERATION AUTO WELDING TECHNOLOGY
Transformer-Gun Spot Welder, Water Cooled to the Tips.
-
ON-BOARD WELDING PROGRAMS & TRAINING MATERIALS
Knowledge Center for Quick and Effective Training
-
ON-GUN DISPLAY WITH FINGERTIP CONTROLS
Quickly Adjust Settings, Increase Productivity
-
ERGONOMIC, WELL BALANCED GUN, EASY TO USE
Free Movement with Dual Action Rotation - Limitless Positioning of Gun and Arms
-
BUILT-IN WI-FI, SMART SOFTWARE & DATA TRANSFER
Instant Software Updates, Ability to Email Welding Logs
Auto Weld
-
MEASURE
At the press of a button, the i5s measures the thickness of the metals automatically using the latest optical technology.
-
SENSE
The i5s senses the metals to be welded from a pre-delivered current to determine the type of metal.
-
WELD
The i5s features a new cable-gun. Based on the thickness and resistance feedback information, the i5s delivers the correct weld power every time, regardless of type of metal or thickness.
On-Board Training
The i5s makes training easier than ever. The i5s’ built-in Wifi allows users to connect directly and quickly to access training videos and materials
Train directly on the machine with onboard training videos and files. The i5s has built-in headphone jacks and speakers to help with training. It doesn't matter if it's a loud shop environment or quite space, plug in or turn up the volume for the speakers to start training instantly.
Explore more than 25 educational training videos right on the i5s spot welder. These videos have been carefully curated to streamline and enhance the training process for body shop technicians. From initial user setup to arm replacement, the video library covers a comprehensive range of topics, ensuring a seamless learning experience.
WATCH i5s VIDEOS NOW›
NEWLY DESIGNED TRANSFORMER GUN
The new Pro Spot i5s Transformer Gun is lightweight, ergonomic, maneuverable,
versatile and easy-to-use. It features unique digital
display, as well as fingertip controls allowing technicians to view
and change settings on the go without returning to the welder and
disrupting welding process.
Superior design allows for quick and
easy arm changes. Rotating bracket and arm provide a full range
of motion, allowing technicians to access any spot on a vehicle.
|
|
|
Rotating Boom Bracket |
Transformer Gun Display |
|
|
|
|
Finger Tip Controls |
Water Cooled Weld Arms |
|
|
|
|
Quick-Connect Arm Changes |
Rotating Weld Arms |
Wireless Connectivity
Featuring integrated WiFi, the i5s enables users to swiftly establish a connection, granting immediate access to the latest software updates, training videos, and content. Seamlessly maintaining and troubleshooting your equipment is now more convenient than ever, as you can effortlessly share information with Pro Spot for rapid and effective issue resolution. This functionality minimizes uncertainty and downtime, enabling workshops to sustain their productivity and profitability.
Instant Training Access
Enjoy connectivity with the i5s' embedded WiFi, facilitating direct and rapid access to training videos and resources
Log Export Capability
This wireless connectivity empowers users to export weld logs, fulfilling the growing requirements of OEMs, insurance firms, and certification programs.
Effortlessly export logs to your preferred email address or directly onto a USB drive.
Ergo Lift Assist™
The revolutionary Pro Spot Ergo Lift Assist™ System (ELA) is the tallest and most versatile motorized boom mechanism for spot welding applications. Designed to reach higher (9.25’ / 2.82 m) and lower (5’ / 1.5 m) than most conventional booms, the ELA makes spot welding any area on today’s high reach / wide footprint vehicles accessible and ergonomically friendly.
Features:
-
9' High, 5' Low, 51" Reach
-
Pivots Left to Right 180°
-
Fits Through Doorways
-
Easy Movement Between Vehicles
-
Balanced and Safe
-
Ergonomic
|
|
|
|||
The tool balancer and pivot arm are uniquely designed to make lifting and holding the weld gun light and easy, no matter the location on the vehicle. |
Muscle strain is reduced and injuries are prevented due to the ergonomic design and functionality of the ELA. As a result, job performance and satisfaction are significantly improved. |
The ELA is powered by either wall outlet or battery power, allowing mobility and boom control anywhere and anytime around the shop without being tethered to an inconvenient electrical outlet. |
|
|
|
|||
The extended reach arms allow work to be done far away from the welder, keeping the area around the vehicle clear and accessible. |
The ELA engineering solution provides a low center of gravity weight distribution to keep the welder balanced, stable and safe at all limits of the ELA’s reach. |
There are retrofit kits available to add the ELA to the i5s spot welders. |
ARMS AND ACCESSORIES

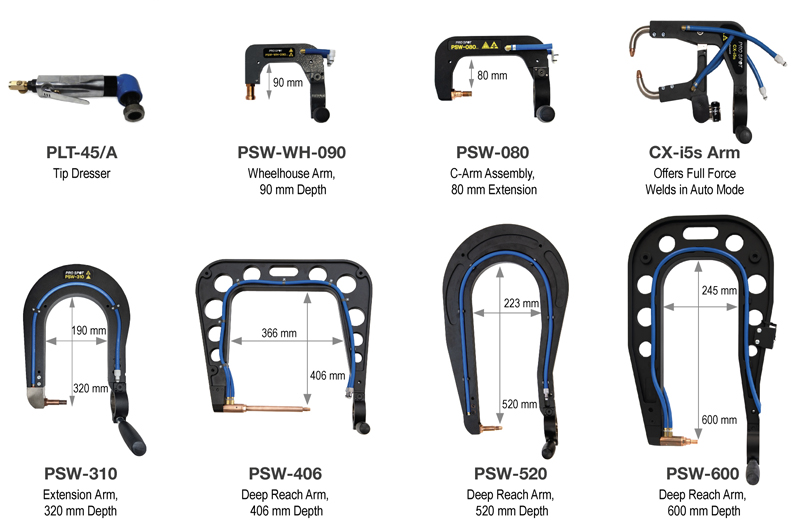

i5s Spot Welder comes with variety of accessories. Additionally, Pro Spot offers a variety of optional arms for deeper reach. The biggest advantage of the new arms is a wider distance to get around large panels in contemporary car designs. Arm design includes longer electrodes to reach those deeper pockets we see in todays vehicles. Water cooling is provided to the tip, which is a requirement with car manufacturers.
Another great optional addition to the i5s Spot welder is the patented C2X Arm. It gives our resistance spot welder more versatility and ease of use than ever before.
Full Force Auto Weld. C2X Arm is also the first C-X Style Adapter to allow users to weld in Auto Weld Mode. Users no longer have to switch to Manual Weld Mode.
Quick Connect. Quickly and Easily change from C style arm to C2X arm now comes with the Pro Spot quick docking system.
Extreme Clapming Force. Safely delivers up to 600daN meeting all OEM force requirements.
For a complete list of all accessories, inclusing welding caps, please see the i5s Component List
Component List›Technical Specifications
| Input Voltage: |
|
| Welding Amperage: | 12,500 Amps (DC) |
| Cable Length: |
|
| Electrode Force: |
|
| Liquid Cooling System: |
|
| Microprocessor: | Wirelessly Upgradeable Software Platform |
| Protection: | IP 21 |
| System Weight: | 385 lbs. (174.6kg) |
Features
- In Gun Display Screen
- Finger Tip Controls
- Water Cooled Gun & Arms
- 360 Degree Arm Rotation
- Wifi Connection - On-Board Wifi
- Software Updates Always Available
- Built in Audio and Video Playback
- Touch Screen
- Auto Weld Mode
- Manual Weld Mode
- Semi-Automatic Weld Mode
***Design is subject to change
