PR-220MV

PR-220MV

The PR-220MV is a microprocessor-controlled, multi-process inverter Welder. All functions can be easily selected on the front panel. The digital LCD display shows the welding voltage and current and all the parameters selected. The PR-220MV is ideal for auto body shops, sheet metal fabrication, light maintenance and repair at home, on the ranch, or in the shop.

Locate a Distributor ›

Features

  • Multi-Voltage

    The PR-220MV comes with a Multi-Voltage Adapter that lets the user switch from 220V to 100V with a simple plug-in.

  • Easy Synergic Settings

    Simply select the desired combination between wire diameter, gas type and thickness to be welded; and the wire speed will be adjusted automatically by the machine.

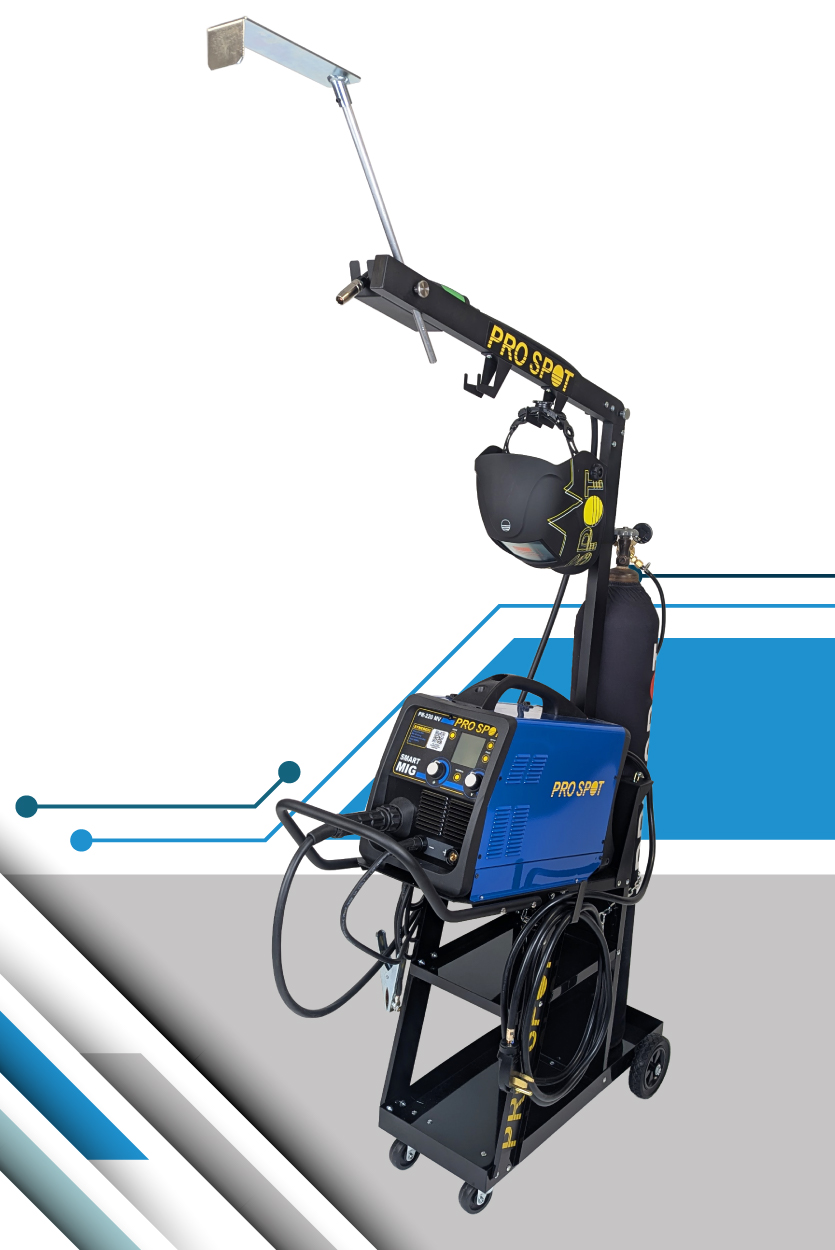

  • Added Mobility

    The PR-220MV has an optional cart, featuring a bottle bracket, accessory drawer and swivel casters adding mobility and convenience.

Front Panel Back to top

PR-205MV front panel and display screen

The PR-220MV features an easy to use, automatic set up. A quick spin of the dial and the machine will automatically set all the parameters that you need. Take full control by using the dials to manually select settings as well.

1. Mode Button: Welding process selector key - MIG/MAG, TIG or Stick
2. Welder Screen: Digital screen to select welder settings
3. Setup Button: Select weld modes such as Synergic or Manual
4. Save and Recall Button: Save welding programs and recall them
5. Wire Speed Knob: Sets the wire speed
6. Material Button: Select which type of material you are welding, select the type of gas and the wire diameter
7. Voltage Knob: Sets in the voltage or material thickness

Compatible Welding Wires

Compatible Welding Wires
The PR-220MV is 1 Spool and 1 Torch MIG Welder with the option to switch between multiple metal types including aluminum, steel and silicon bronze. Wire types that can be used with the PR-220MV:

  • Aluminum 0.8 - 1.0 dia.

  • Steel 0.6 - 1.0 dia.

  • Flux core 0.8 - 1.0 dia.

  • Stainless Steel 0.8 - 1.0 dia.

  • Brazing 0.8 - 1.0 dia.

    • Technical Specifications

    Input Power
    • Single Phase
    • 230 or 115V AC
    • 50/60 hz
    Output Rating MIG
    200 amp dc @ 35 % duty cycle
    120 amps dc @ 100% duty cycle
    TIG
    200 amp dc @ 35 % duty cycle
    120 amps dc @ 100% duty cycle
    MMA (STICK)
    200 amp dc @ 35 % duty cycle
    120 amps dc @ 100% duty cycle
    Output Range
    • MIG: 20 amps - 200 amps
    • TIG: 5 amps - 200 amps
    • MMA: 5 amps - 200 amps
    Dimensions 20" x 11" x 17" (LxWxH)
    Weight 50 lbs.

    Features

    • Multiple Welding Processes
    • Inverter Technology
    • Automatic Line Voltage Compensation
    • Multi Voltage - 115volt/220 Volt Input
    • Power Generator Friendly
