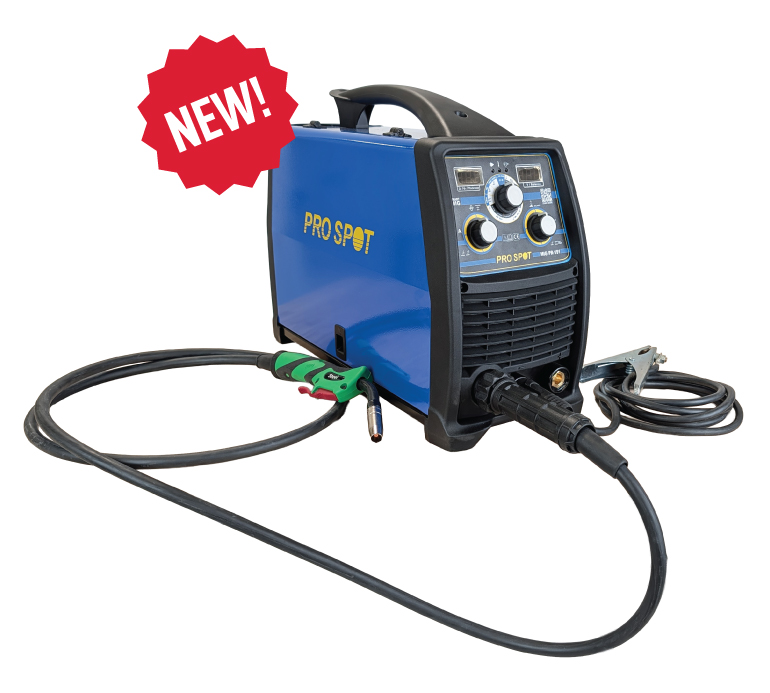

PR-191 Multiprocess Welder
- PR-191 Brochure - 2.1 MB
- Component List - 1.3 MB
- Manual - 1.8 MB
Equip your shop or service truck with the PR-191, a highly versatile multiprocess inverter welder engineered to seamlessly handle MIG, MMA (Stick), and TIG welding applications. Whether you are repairing farm equipment, customizing vehicles, or managing structural construction, the PR-191 delivers consistent, professional results project needs instantly.
Locate a Distributor ›Unmatched Versatility & Performance
True Multiprocess Capabilities: Switch effortlessly between MIG, MMA, and TIG welding to suit any project requirement or material.
Advanced Control: Features Synergic MIG technology and Advanced Lift ARC for TIG welding, ensuring smooth, precise, and easily managed arcs.
MMA Anti-Sticking: Built-in anti-stick functionality prevents your electrodes from fusing to the workpiece, making your Stick welding process cleaner and more efficient.
Gas & No Gas Ready: Adapt to indoor shop environments or breezy outdoor field work with flexible Gas or No Gas (flux-cored) welding capabilities.
Reliable Wire Feed: Equipped with a robust metallic 2-roll wire feed system that readily accommodates 1 to 5 Kg spool sizes.
Generator Friendly & Protected: Features a built-in line voltage compensation filter and is engineered to be fully compatible with power generators, keeping you operational on remote, off-grid job sites.

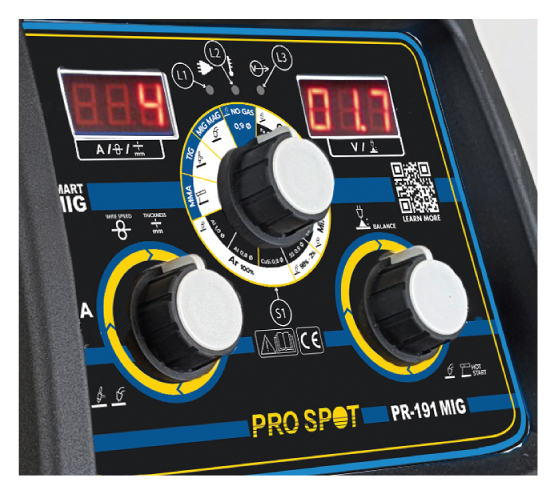

Digital Precision: An integrated digital display provides clear, real-time feedback for exact parameter adjustments.
Ecodesign Ready: Environmentally conscious design meeting modern energy efficiency standards.
Applications
Built for Your Industry Compact but powerful, the PR-191 is designed for maximum adaptability across a wide range of heavy-duty and precision fields, including:
|
|
|
|
|
||||
|
Automotive & Vehicle Customizing |
Farming & Agriculture |
Service & Routine Maintenance |
Light & Heavy Industry | Structural Construction |
| Technical Specifications | |||
|---|---|---|---|
| Input voltage (1ph) | 230V - 50/60Hz | ||
| MIG | MMA | TIG | |
| Power 60% | 4.8 KW | 4.8 KW | 4.8 KW |
| No load output voltage |
70 V | 70 V | 70 V |
| Amp. min-max | 25 - 180 A | 20 - 180 A | 5 - 180 A |
| Duty Cycle 40° | 180A @ 30% 105A @ 60% 75A @ 100% |
180A @ 20% 105A @ 60% 75A @ 100% |
180A @ 30% 105A @ 60% 75A @ 100% |
| Insulation Class | H | ||
| Protec. Degree | IP 22S | ||
| Machine (LxWxH) | 9x16x16 in 230x400x400 mm |
||
| Weight box/net | 32.6 lbs / 14.8 kg | ||

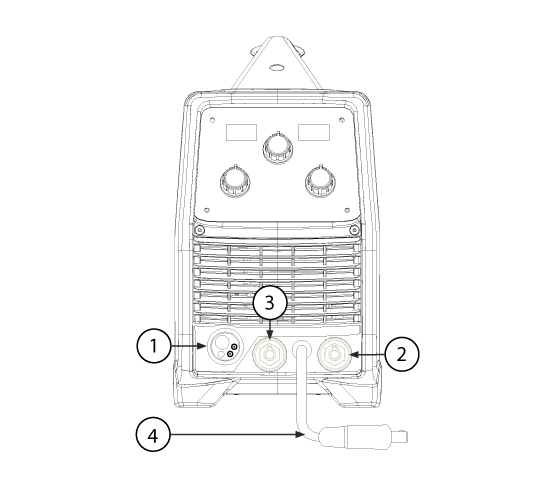

Front Panel
1. MIG/MAG TORCH attachment
2. Positive Socket
3. Negative Socket
4. Torch connector polarity change
