PHS-100 | Hybrid Spot Welder
- Brochure - 897.6 KB
- Component List - 1.1 MB

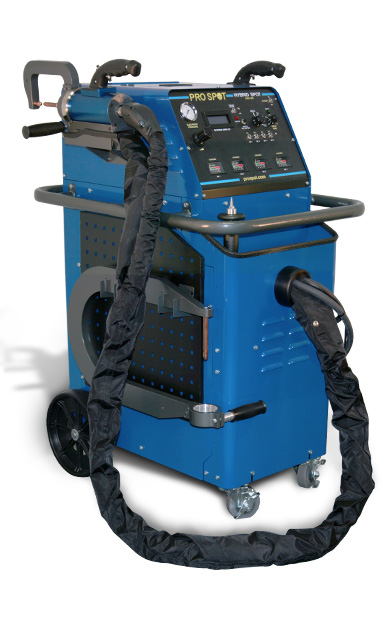

No 220V or 3-Phase required! Battery operated DC spot welding system. The Hybrid Spot Resistance Spot Welder is a great alternative spot welder where 3 phase power is not available or overloaded. The battery operated welder delivers high amperage DC weld current designed to produce powerful spot welds. No input power is required to operate the welder. The built in charging system is capable of charging all batteries at the same time - 110V or 220V charging voltage.
Locate a Distributor ›-
Battery Operated
The hybrid series welders are completely battery operated which means no special power installation is required, makeing them much more portable than traditional welders.
-
Double-Acting Gun
New innovative Spot Gun from Pro Spot features double-acting cylinder, wide-spreading electrodes, self-aligning electrodes.
-
Extension Arms
The Pro Spot Hybrid Battery Spot Welder comes with a variety of extension arms to accommodate any welding job situation.
-
Control Panel
The Hybrid Spot features a large control panel displaying current control, battery voltage, air pressure & more.
-
Single-Sided Welding
10 different Single-Sided welding applications give you the power and versatility to complete any job.
Hybrid Series - Battery Operated WelderBack to top
-
-
Convenient 110V/220V auto-sensing outlet on back for easy re-charging!
Can also be charged while welding. Load test of battery system included.
PS-500 Double Acting Spot Gun Back to top
Push one button to open electrodes wide, then push the other button to close electrodes and weld. Pro Spot's PS-500 Spot Gun System features electrode pressure over 600 Lb. with all extension arm sizes. I-CAR minimum recommended squeeze pressure is 400lb.
Extension Arms Back to topLearn more ›
-
Exchanging the arms on our weld guns is quick and easy.
-
PS-503 PS-305 PS-306 PS-403 PS-302 PS-52-5/8 600mm U-Arm 508mm U-Arm C-Arm Deep X-Adapter C-Arm Wheelhouse Arm -
The Hybrid comes standard with several different types of weld arm extensions (508mm U-Arm, C-Arm, Wheelhouse Arm) and others are available at request, so that you can tackle any welding problem with as much ease and accuracy as possible.

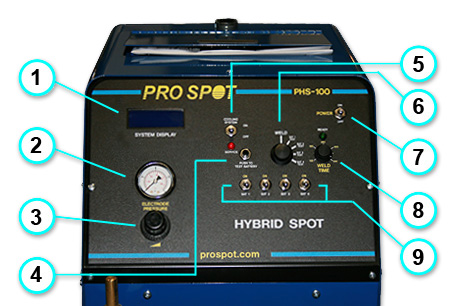

Front Panel Back to top
The PHS-100 features a simple and clean front panel layout, utilizing physical switches and knobs in place of a LCD screen to reduce power consumption maximizing the number of welds the PHS-100 is capable of handling.
- System Display
- Air Pressure Guage
- Air Pressure Regulator
- Battery Test Button
- Air Cooling Switch
- Weld Switch
- Power Switch
- Weld Time Knob
- Battery Setector Switch Array
Single Sided Welding Back to topLearn more ›
-
-
The Hybrid is capable of handling a variety of single sided welding needs, including:
washer, nut & bolt, nail, rivet and stitch.
Technical Specifications
| Input Voltage: |
|
| Welding Amperage: | 10,000A max |
| Cable Length: | 8' (2.5m) standard |
| Electrode Pressure: |
|
| Cooling System: |
|
Dimentions |
|
| Shipping Weight: | 515 lb (234kg) |
Features
- 4 cable system
- Double-Acting Spot Gun
- Two sided spot welding
- Single sided welding
- X-Gun adaptor
