Features

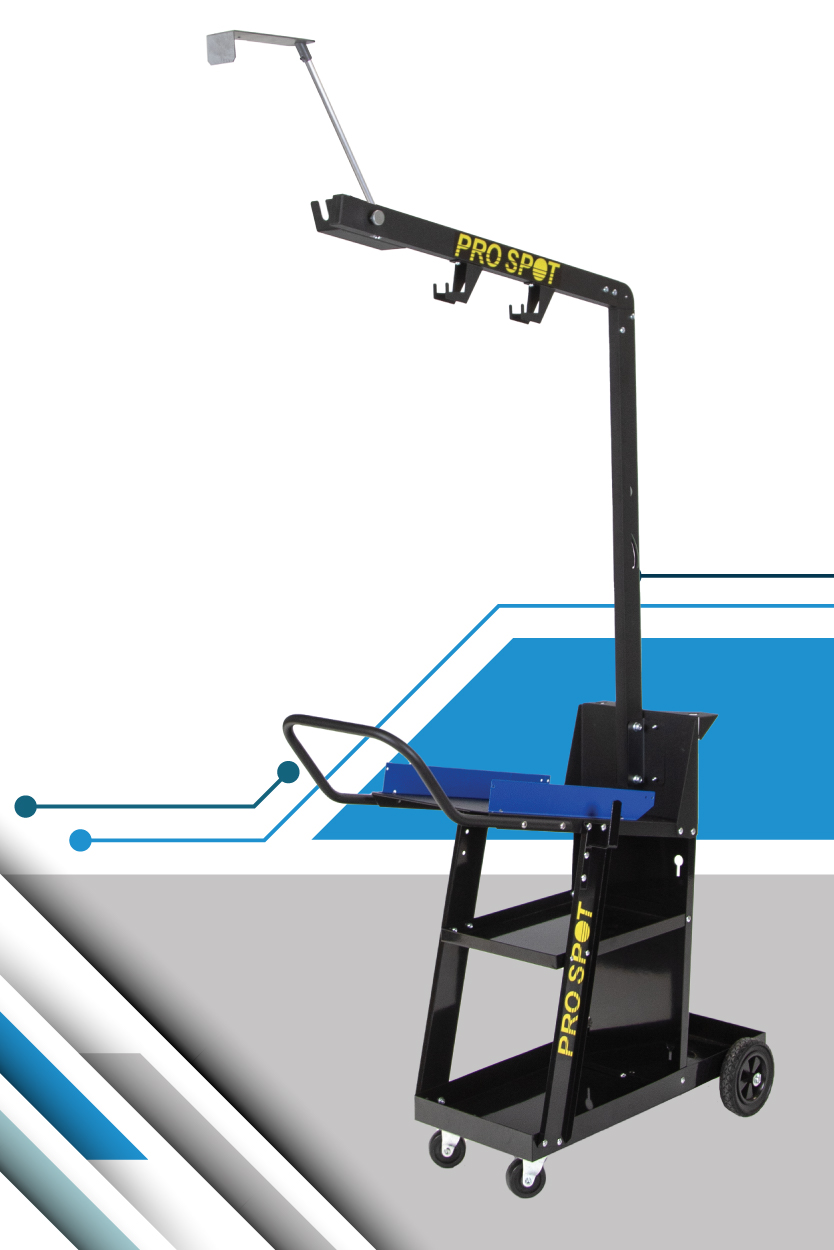

  • The PR-205 has an optional cart featuring a bottle bracket, accessory drawer, and swivel casters adding mobility and convenience.

  • Adjustable Slope & Burn Back Time: The Slope adjusts the response of the motor at start-up ensuring a clean start to the weld. Burn Back Time maintains power to the torch after the motor stops ensuring a clean end to the weld.

  • Electrode Positive vs. Electrode Negative. The PR-205 enables the welder to easily change the electrode polarity for use with solid wire (electrode positive) or flux core wire (electrode negative).

  • PR-205 has Manual, Synergic, and Stick welding options

Compatible Welding Wires

Compatible Welding Wires

The PR-205 has 1 Spool and 1 Torch.

  • Aluminum 0.8 - 1.0 dia.

  • Steel 0.6 - 1.0 dia.

  • Flux core 0.8 - 1.0 dia.

  • Stainless Steel 0.8 - 1.0 dia.

  • Brazing 0.8 - 1.0 dia.

  • Technical Specifications

    Input Power :
    • Single Phase
    • 230VAC 3.5kVA
    • 50/60 hz
    No Load Voltage : 25VAC
    Open-circuit Voltage : 25VDC
    Current Range : 5 - 170A
    Duty Cycle :
    • 25% 170A
    • 60% 110A
    • 100% 85A
    Insulation : Type H
    Protection Degree : IP22S
    Dimensions : 18.9" x 15.1" x 8.7" (LxWxH)
    Weight : 23 lbs

    Features

    • Synergic Mode for ease-of-use
    • 1 Torch
    • 1 Wire Spool
    • Inverter Technology
    • Adjustable Burn Back Time
    • No need for 3-phase power
