EV Battery Lift

PRO-EVBL | EV Battery Lift

PRO-EVBL, battery-operated lifting table, is designed for handling heavy components in automotive service and repair environments, including electric vehicle (EV) battery packs and drivetrains. Its robust design and powerful lifting capabilities enable technicians to securely raise and lower parts with ease and precision. The lift’s platform is adjustable, making it adaptable for a range of applications beyond battery and drivetrain removal, such as moving engines, transmissions, and other equipment that requires stable handling.

This versatile lift is invaluable in modern automotive workshops, where EV servicing demands safe, reliable solutions to handle high-voltage battery packs and delicate drivetrain components. The battery-operated lift table is also durable and low maintenance, designed to withstand the demands of daily use in busy service environments.

Locate a Distributor ›

EV BATTERY LIFT FEATURES







Powerful Lift Capacity:
Easily handles heavy EV batteries, drivetrains, and other components with load support up to 3,300 lbs (1500 kg).



Wireless and Mobile:
Battery-powered, cordless design for smooth, flexible movement across the shop floor, enhancing workspace safety.



Adaptable Height & Positioning:
Adjustable platform and ergonomic controls provide precise component alignment and positioning.



Engineered for Versatility:
Ideal for a variety of tasks, including removing and installing EV batteries, drivetrains, engines, and transmissions.



Efficient & Safe Operation:
Minimizes technician strain and promotes safe handling of high-voltage and delicate components.



Durable & Low Maintenance:
Capable of 30 lifting cycles on a single charge.

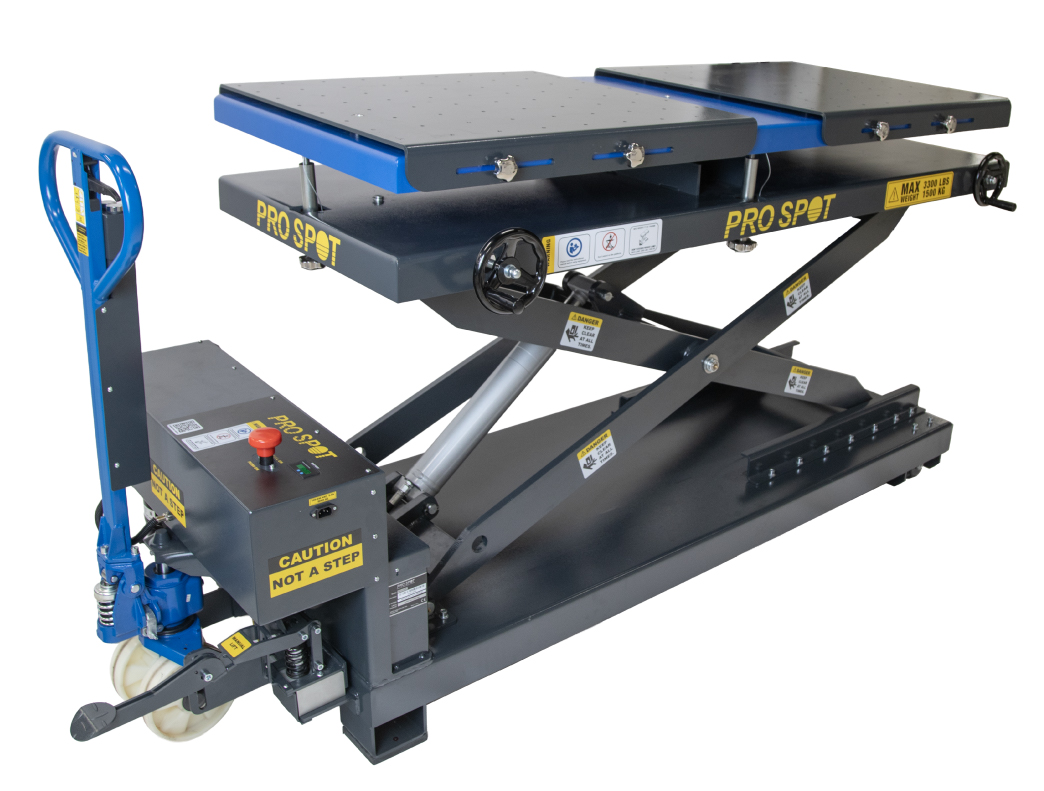

Battery-Powered EV Lift Table

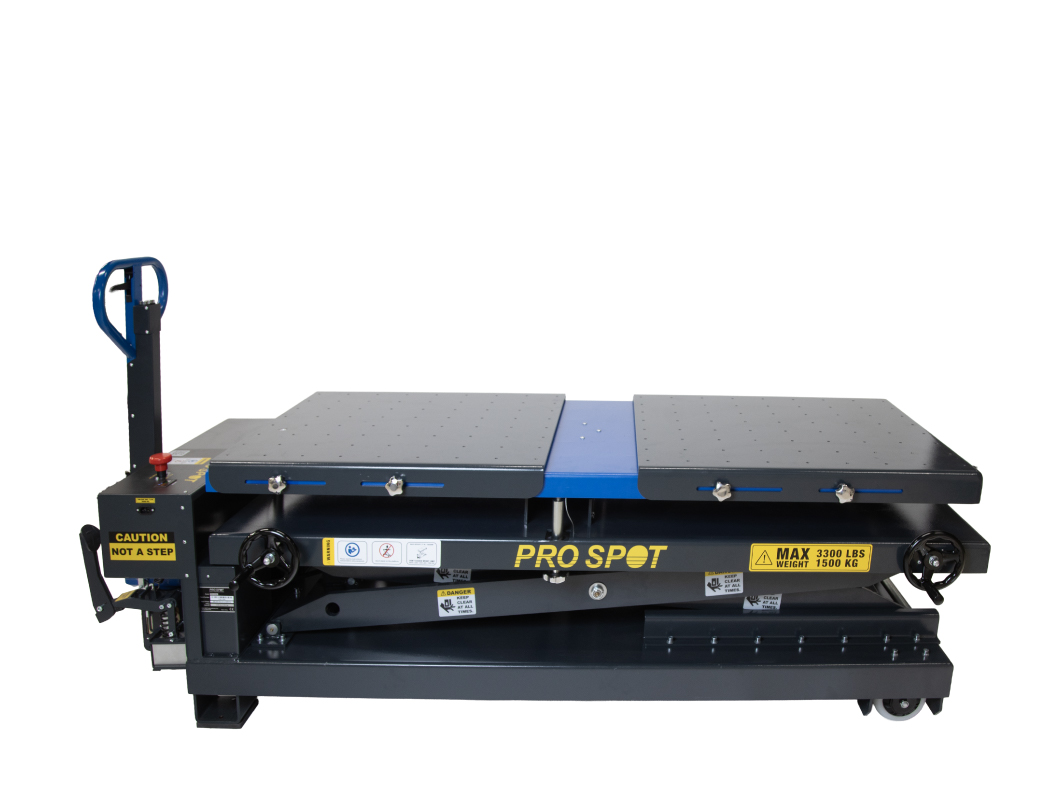

  • PRO-EVBL Lowest Position

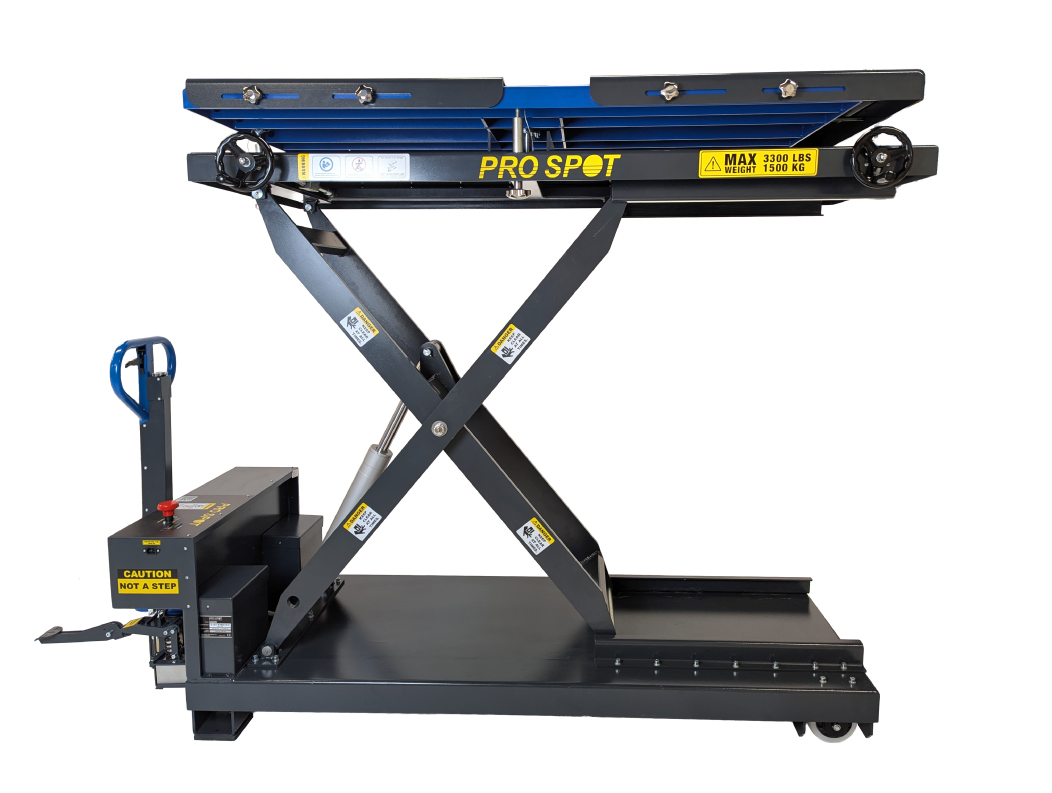

  • PRO-EVBL Highest Position

One of its standout features is the mobility provided by a battery-powered system, allowing for smooth and flexible movement across the shop floor without the need for cumbersome cords or safety and efficiency, especially in high-traffic areas.

These tables feature adjustable heights ranging from a standard 29.75 inches (755.5 mm) to a full extension of 77 inches (1965 mm) and are engineered to support up to 3,300 lbs (1500 kg), making them well-suited for managing even the heaviest EV components. With ergonomic controls, the lifting process is streamlined, allowing technicians to work efficiently with minimal physical strain. Fine height adjustments are easy to make, providing precise alignment and positioning for smooth component removal and installation.


Operating EV Battery Lift

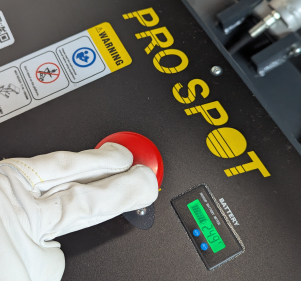

  Up and Down buttons on PRO-EVBL   Battery indicator on PRO-EVBL   PRO-EVBL shifting


Turn on the battery power switch. The battery level can be viewed in real-time on the display screen.



Press the lift button to raise the platform to the appropriate height, then release the button to stop upward movement.

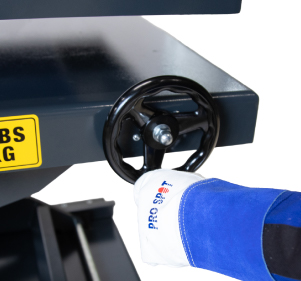

Side Handwheels adjust Lower Table. Turn the handwheel to rotate/swivel the Lower Table left or right.

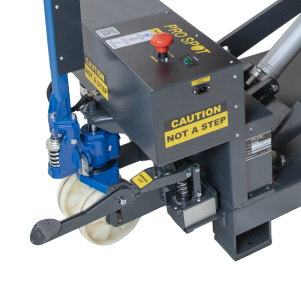

  Foot Pedal on PRO-EVBL   Adjusting upper table on PRO-EVBL


Use the pedal to fine-tune the height of the working platform, ensuring accurate contact between the table and the battery pack.

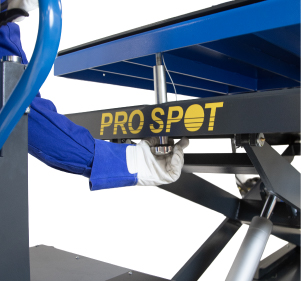

Twisting the screw tilts the upper table. There are two adjustment screws on the side and on the front.



Technical Specifications

Rated load 3307lbs / 1500kg
Maximum lifting height: 77.3622” / 1965cm
Lowest height: 29.75” / 75.55cm
Platform length: 78.75”~ 86.6” / 2m~2,2mm
Platform width: 32.3” / 82cm
Rise time with load: ≤60s
Drop time with load: >20s
Motor wattage: 0.75kw
Motor voltage: DC24V
Tilt angle of the platform in the X direction: ±2.6°
Tilt angle of the platform in the Y direction: ±5.4°
Travel distance of the platform along the X axis: 7.9” / 200mm
Travel distance of the platform along the Y axis: ±1.38” / ±35mm

Features

  • The lifting table offers six degrees of motion, ensuring comprehensive position adjustments for user needs.
  • Battery driven hydraulic drive and pedal drive for precise positioning control.
  • Powered by two lead-acid batteries, it requires no external power source, enhancing convenience.
  • The hydraulic drive ensures smooth lifting operations.
  • The lifting button is integrated into the forklift truck handle for easy operation, with real-time power monitoring displayed on the screen.
  • A pallet jack style lift is included for easy mobility.
  • Large adjustment dials allow platform angle adjustments in all directions.





***Design is subject to change
