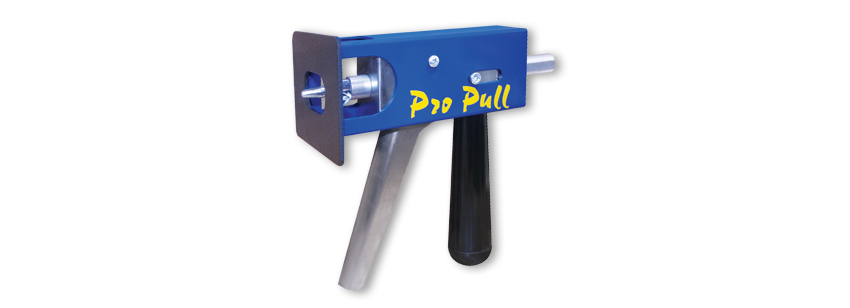

Pro Pull

Pro Pull

The Pro Pull is designed to be extremely flexible with interchangeable blocking plates and the adjustable weld shaft. The Pro Pull has a lot of options to maximize the dent pulling technique.

Locate a Distributor ›

Parts Breakdown

Pro Pull breakdown of parts

The Pro Pull features a removable weld shaft. The weld current is transfered through the shaft to the intended weld target (no cable is required to transfer the current).

  1. [PP-10-04] - Block Window Size: 2.5"(63mm) x 1.5"(38mm)

  2. [PP-10-01] - Block Window Size: .75"(17mm) dia.

  3. [PP-10-03] - Block Window Size: 1.75"(44mm) x 1"(25mm)

  4. Large opening for great visual control of the pulling area.

  5. [CLT-53-8] - 8mm contact tip

  6. [N-38] - nut

  7. [CLP-74] - end adapter

  • Weld the electrode tip to the panel and squeeze the handle to pull the dent.

  • Pro Pull comes with all accessories shown: 1 Pro Pull, 1 Electrode, 3 Blocking Plates and all necessary hardware.

  • PR0-66 Pro Pull shown with optional SA-0028 Single Pull System

  • 1. Aim, position and fire!
    2. Pull dent with Auto blocking
    3. Twist gun to release

Technical Specifications

Dimensions (Tool):
  • 8.5" x 1.5" x 8.25"
  • 21.6cm x 3.8cm x 21cm
Dimensions (Carrying Case):
  • 14" x 3.25" x 10.25"
  • 35.6cm x 8.26cm x 26cm
Weight (Tool Only): 2.5lb (1.13kg)
Weight (With Case): 3.5lb (1.59kg)
Blocking plate system:
  • 0.75" (1.9cm) dia.
  • 2.5"(6.35cm) x 1.5"(3.8cm)
  • 1.75"x1"
Weld shaft diameter: 5/8"

Features

  • No weld cable required between tool and weld handle
  • Makes dent repair quick, easy and accurate
  • Fast changing blocking plate system
  • Adjustable weld shaft
  • Available for any weld gun
